Description
xThe ATND1061 beamforming microphone array is available in two configurations:
ATND1061DAN – Dante™-enabled
ATND1061LK – Audio-Technica LINK enabled

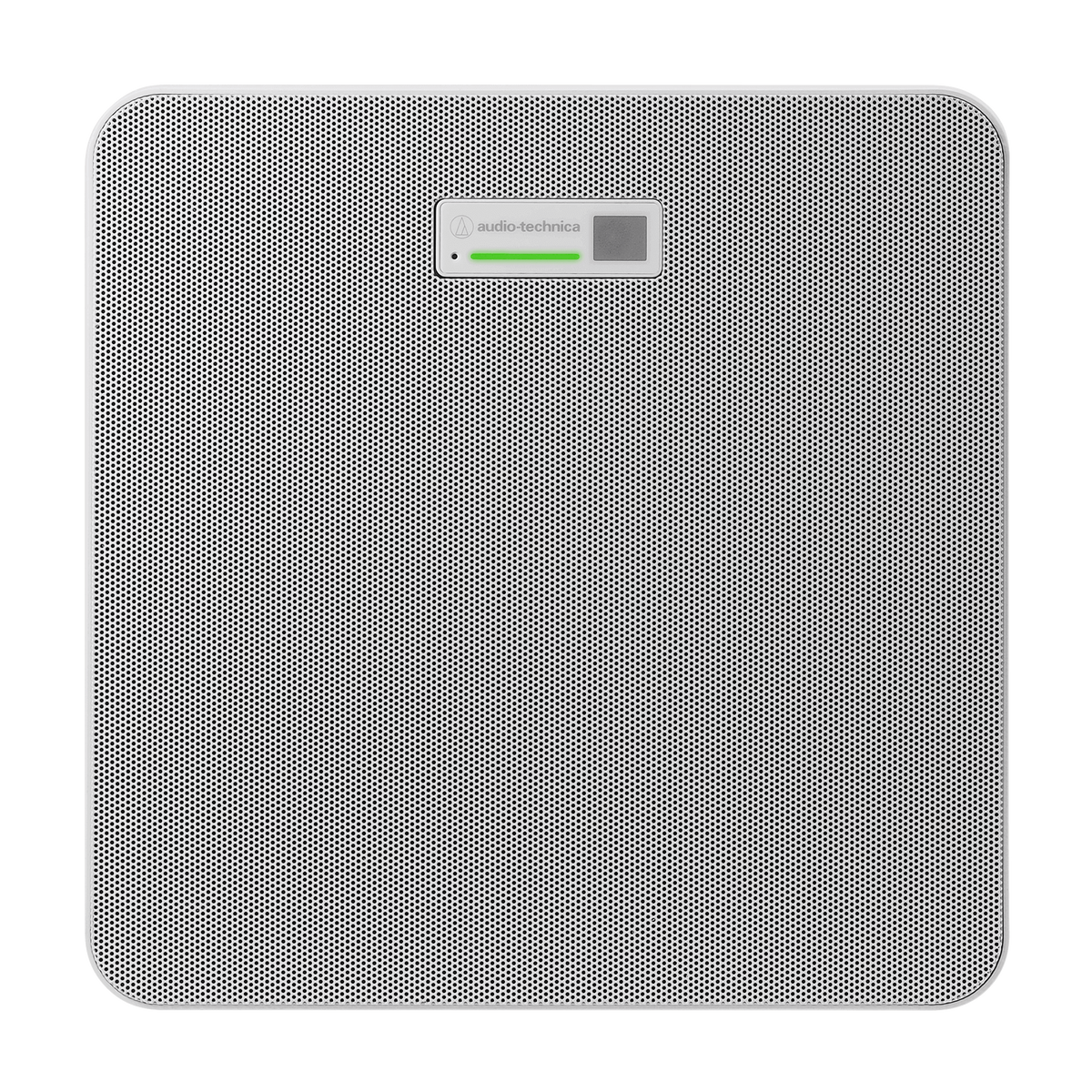

The Audio-Technica ATND1061 Beamforming Ceiling Array Microphone delivers high-quality audio clarity, dependable performance, and easy AV integration for corporate conferencing, classrooms, and hybrid workspaces.
Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings.
The ATND1061 Beamforming Ceiling Array Microphone from Audio-Technica elevates meeting room audio by precisely capturing voices while intelligently reducing background noise. Available in Dante™-enabled (ATND1061DAN) and Audio-Technica LINK-enabled (ATND1061LK) configurations, it provides flexible solutions for professional AV installations, suitable for rooms of all sizes.
Built-in digital signal processing (DSP)—including automix, acoustic echo cancellation (AEC), noise reduction, automatic gain control (AGC), and 4-band EQ—eliminates external DSP requirements. Users can easily configure up to 32 customizable microphone pickup zones (including Coverage and Priority Zones) across six audio output channels using the intuitive Digital Microphone Manager software.
The microphone is certified for Microsoft Teams Rooms, Zoom Rooms, and Google Meet as part of Q-SYS installations, simplifying AV integration. Installation options include flush-mounting, surface mounting, and VESA compatibility, compliant with UL 2043 standards for safe plenum installations. The package includes all necessary mounts, accessories, and an IR remote for easy muting and preset recall.
Fabric & Care
x| Microphone | |
|---|---|
| Beam Width | 90-degrees |
| Polar Pattern | Beam pattern |
| Frequency Response | 60 Hz to 18,000 Hz |
| Maximum Input Sound Level | 102 dBSPL |
| Sensitivity | -8 dBFS (1 kHz, 94 dBSPL) |
| Dynamic Range | 89 dB (A-weighted) |
| Signal-to-Noise Ratio | 61.5 dB (A-weighted) |
| Self-Noise | 25 dBSPL (A-weighted) |
| Analog Audio | |
|---|---|
| Frequency Response | 20 Hz to 20 kHz (+1.0/-2.0 dB) |
| Dynamic Range | 100 dB (A-weighted) |
| Signal to Noise Ratio | 80 dB (A-weighted) |
| Headroom | 20 dB |
| Residual Noise | -75.8 dBu (A-weighted) |
| T.H.D | <0.1% (1 kHz, unity) |
| Analog Input | MIC Maximum: -30 dBu MIC Unity: -50 dBu LINE Maximum: +12.2 dBu LINE Unity: -10 dBV, Switchable |
| Analog Output | OUTPUT Maximum: +19.2 dBu OUTPUT Unity: +4 dBu/-10 dBV/-33 dBV, Switchable |
| General Specifications - Beamforming Array | |
|---|---|
| Power Requirement | PoE (IEEE 802.3af Class 0) |
| Power Consumption | Max. 7 W |
| Operation Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operation Humidity Range | 25% to 85% (Non condensing) |
| Dimensions | 227.5 mm (9.0”) × 227.5 mm (9.0”) × 30 mm (1.2”) （W × D×H) |
| Weight | 1250 g (44 oz) |
| Network | Dante: 1 Gbps IP control: 100 Mbps |
| Digital Audio | Sampling rate: 48 kHz Bit depth: 24 bit |
| Latency | Microphone (CH1 to CH6): 47 msec Microphone (Auto Mix CH): 79 msec Dante: Min. 250 usec, Max. 5 msec |
| I/O Connector | Network/Dante (ATND1061DAN): RJ-45 A-T LINK (ATND1061LK): RJ-45 Analog input: Euroblock 3 pin Analog output: Euroblock 3 pin GPI: Euroblock 3 pin |
| Phantom Power | Analog input: 12 V |
| Included Accessories | ・IR remote controller ・Surface mount adapter ・Screw (M4 × 50 mm) × 4 ・Flush mount adapter ・Flush mount cover ・Screw (M4 × 10 mm) × 12 ・Hole cover ・Nut × 4 ・Snap bushing × 2 ・Tile bridge A × 2 ・Tile bridge B × 2 ・Tile bridge C × 4 ・Seismic cable ・Zip tie ・Safety belt ・Euroblock connector × 3 ・Installation template |
Product Details
x
This Product is TAA-Compliant Learn More About TAA-Compliance- The ATND1061 beamforming microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small
- Advanced beamforming for precise voice capture
- Integrated DSP with automix, AEC, noise reduction, automatic gain control, 4-band EQ
- Coverage and Priority Zones for customizable audio pickup
- Easy installation with Dante and Audio-Technica LINK compatibility
- IR remote included for muting and preset management
- The ATND1061 beamforming microphone array is available in two configurations:
ATND1061DAN – Dante™-enabled
ATND1061LK – Audio-Technica LINK enabled - ATND1061 is enabled with VISCA over IP to control PTZ (pan-tilt-zoom) cameras and other video equipment over a network and sync with microphone audio
- ATND1061 is equipped with voice lift technology that allows everyone in a large meeting space to hear equally well – regardless of how far away they are from the person speaking
- Powerful onboard DSP: automix, acoustic echo cancelation, noise reduction, automatic gain control, and 4-band EQ
- User-friendly Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings
- Six individual output channels with up to 32 user-defined microphone pickup zones provide the flexibility to cover a wide variety of room sizes and meeting types
- Output Channel 1 can be configured with up to 16 user-defined Coverage Zones to ensure coverage of nonpriority or unplanned participants
- Output Channels 2–6 can be configured with up to 16 user-defined Priority Zones to ensure priority pickup of participants in known locations
- Proprietary voice activity detection (VAD) technology enables the microphone to discern between a voice and unwanted noises such as paper shuffling
- Exclusion zones can be set in the software to avoid known sources of unwanted noise (such as air-handling systems)
- Two network ports with Single Cable and Split modes to send Dante audio and microphone control data together or separately over category cable (ATND1061DAN)

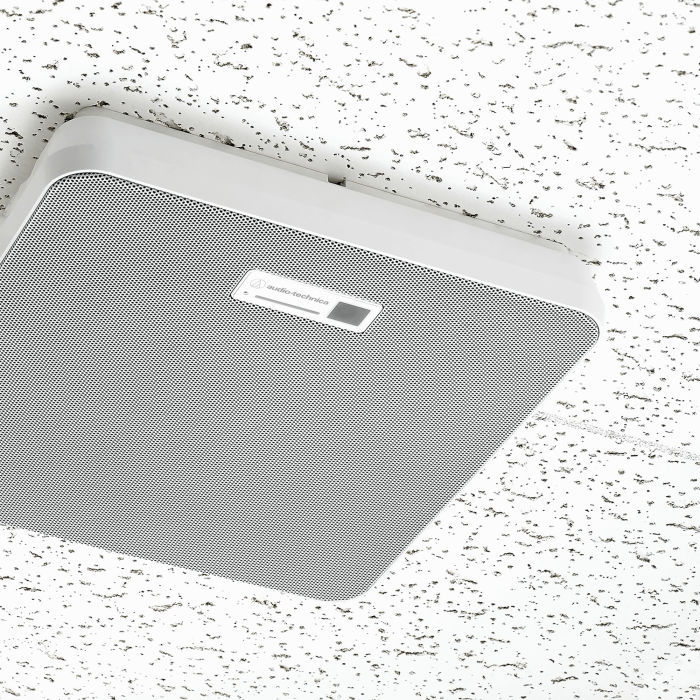

- Mounts flush or on the surface of a drop ceiling or hard ceiling, or in open architecture spaces using VESA mount
- UL 2043 compliant for installation in plenum spaces
- Includes tile bridge, safety wiring, and mounting hardware and accessories
- Low-reflective white finish matches ceiling tiles in most environments
- Powered by network PoE
